HE9 Aluminium

HE9 Aluminium is a heat-treatable aluminium–magnesium–silicon alloy known for its excellent extrudability, smooth surface finish, high corrosion resistance and good anodising response. It is commonly used for architectural profiles, window and door frames, electrical enclosures, furniture, railings, tubes and other components requiring complex shapes with a clean finished appearance.

HE9 is an older British designation commonly cross-referenced with Aluminium 6063, EN AW-6063, AA 6063 and UNS A96063. Because HE9 was principally used for extruded bars, tubes and sections, buyers should confirm the required product form, standard and temper before accepting a modern equivalent.

Solitaire Steel & Engineering LLP, based in Khetwadi, Mumbai, India, supplies and exports HE9 aluminium sheets, plates, pipes, tubes, coils, round bars, flat bars, angles, channels and customised extruded profiles. Material can be supplied in applicable tempers, standards, dimensions and finishes according to the buyer’s drawing, application and quantity.

Table of Contents

Send Enquiry whatsapp

Call Us

+91 9819046580

Email Us

info@solitairesteelllp.com

Technical Specifications of HE9 Aluminium

Physical Properties

Property Typical Value
Density Approximately 2.70 g/cm³
Melting Range Approximately 616°C–654°C
Modulus of Elasticity Approximately 69–70 GPa
Poisson’s Ratio Approximately 0.33
Thermal Expansion Approximately 23.4 × 10⁻⁶/°C
Electrical Resistivity Approximately 0.033–0.035 µΩ·m

Physical values are typical for Aluminium 6063 and may vary slightly with product form, temper and governing specification.

Mechanical Properties

Property Typical Requirement in T6 Condition
Tensile Strength Approximately 195–230 MPa minimum
0.2% Proof Strength Approximately 160–190 MPa minimum
Elongation Approximately 5%–10% minimum
Brinell Hardness Approximately 73–80 HB
Shear Strength Approximately 145–155 MPa
Modulus of Elasticity Approximately 69–70 GPa

Mechanical properties depend on section thickness, diameter, wall thickness, manufacturing method and temper. Buyers should specify the minimum required properties in the enquiry.

Electrical Properties

Property Typical Value
Electrical Conductivity Approximately 50%–55% IACS
Electrical Resistivity Approximately 0.033–0.035 µΩ·m
Electrical Application Suitability Good for selected electrical components, conduit and enclosures

HE9 provides useful electrical and thermal conductivity, but commercially pure aluminium grades may be preferred when maximum conductivity is the primary requirement.

Optical Properties

Property Performance
Natural Surface Appearance Smooth silver-grey metallic finish
Surface-Finish Quality Excellent
Polishing Ability Excellent
Anodising Response Excellent
Decorative Anodising Highly suitable
Available Finish Mill finish, polished, brushed, anodised, powder-coated or customer-specific finish

The final appearance depends on extrusion quality, surface preparation, anodising process and colour requirements.

Thermal Properties

Property Typical Value
Thermal Conductivity Approximately 200–218 W/m·K
Specific Heat Capacity Approximately 0.90 J/g·K
Melting Range Approximately 616°C–654°C
Thermal Expansion Coefficient Approximately 23.4 µm/m·K

Processing Properties

Property Performance
Extrudability Excellent
Complex Profile Production Excellent
Cold Formability Good, particularly in T4 condition
Machinability Fair to good
Weldability Good
Brazability Good
Corrosion Resistance Excellent
Heat-Treatable Yes
Common Tempers T4, T5, T6 and T66
Anodising Ability Excellent
Powder-Coating Suitability Excellent with proper surface preparation

Welding can reduce strength in the heat-affected zone. Where the welded component carries structural loads, the reduced post-weld mechanical properties should be considered during design.

Chemical Composition

Element Composition (%)
Magnesium (Mg) 0.45%–0.90%
Silicon (Si) 0.20%–0.60%
Iron (Fe) 0.35% maximum
Copper (Cu) 0.10% maximum
Manganese (Mn) 0.10% maximum
Chromium (Cr) 0.10% maximum
Zinc (Zn) 0.10% maximum
Titanium (Ti) 0.10% maximum
Other Elements—Each 0.05% maximum
Other Elements—Total 0.15% maximum
Aluminium (Al) Remainder

Chemical limits should be confirmed against the applicable standard and the supplied material test certificate.

HE9 Aluminium Equivalent Grades

Designation System Commonly Referenced Grade
Old British Designation HE9
Aluminium Association 6063
European Designation EN AW-6063
UNS A96063
ISO Designation AlMg0.7Si
German Material Number 3.3206
French Designation A-GS
Common Extrusion Standard EN 755
Cold-Drawn Product Standard EN 754
ASTM Extrusion Standard ASTM B221/B221M
ASTM Tube Standard ASTM B210/B210M
ASTM Pipe Standard ASTM B241/B241M

These are commonly referenced designations and standards. They may not be direct equivalents for every product form, temper or mechanical-property requirement.

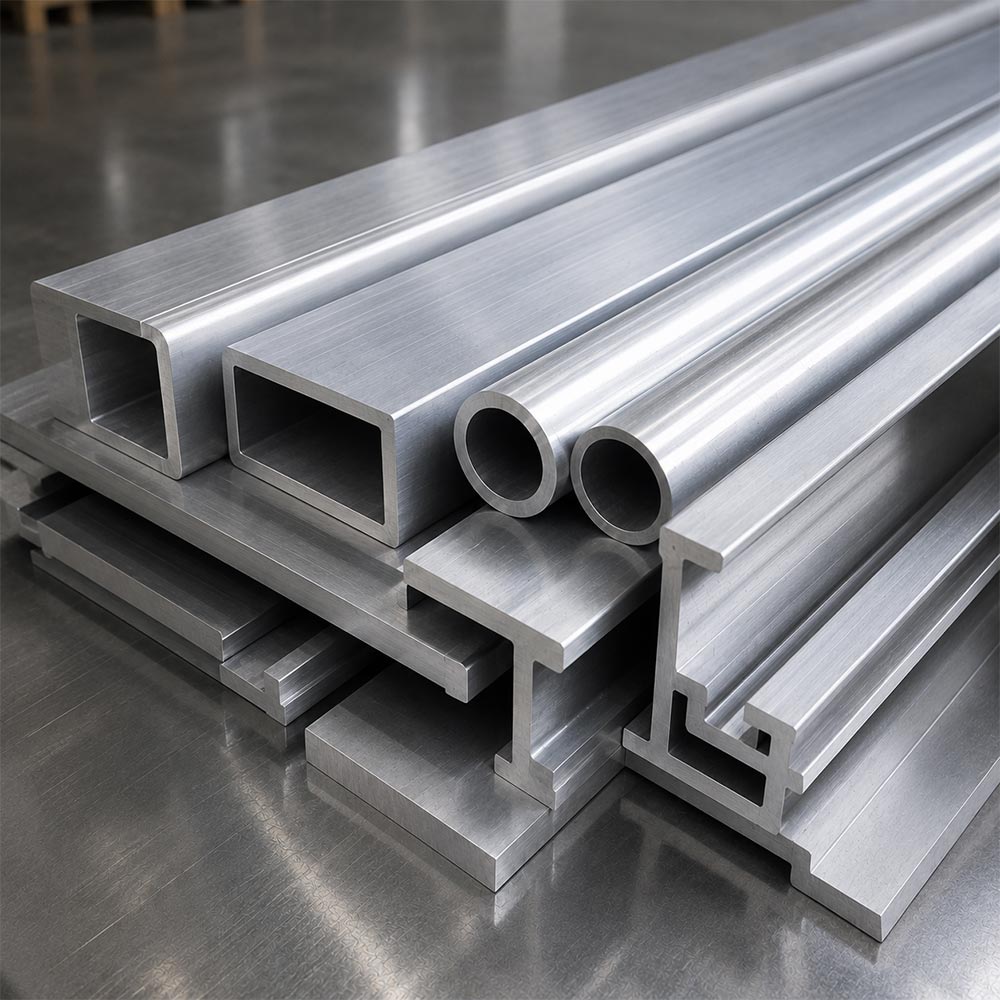

HE9 Aluminium Product Range by Solitaire Steel & Engineering LLP

Product Applicable Standard Available Type Size Availability Common Applications
Sheets Applicable ASTM, EN or customer specification Plain, mill finish, anodised or cut-to-size Standard and customised dimensions Panels, enclosures, decorative parts and light fabrication
Plates Applicable ASTM, EN or customer specification Mill finish, heat-treated or cut-to-size Standard and customised dimensions Base plates, panels and machined components
Pipes ASTM B241/B241M or applicable specification Seamless, extruded or structural Required OD, wall thickness and length Conduit, irrigation, railings and lightweight structures
Tubes ASTM B210/B210M, EN 755 or approved equivalent Extruded, drawn or seamless Required OD, wall thickness and length Furniture, architectural systems and equipment frames
Coils Applicable sheet and strip specification Mill finish, slit, coated or anodised Required thickness, width and coil quantity Formed panels, enclosures and decorative components
Wire Coils Applicable wire specification Straightened or coil form Required diameter and coil quantity Fasteners, formed parts and electrical components
Round Bars ASTM B221/B221M, EN 755 or approved equivalent Extruded or drawn Standard and customised diameters and lengths Turned components, spacers, supports and general engineering
Flat Bars ASTM B221/B221M, EN 755 or approved equivalent Extruded, rolled or cut-to-size Required width, thickness and length Frames, trims, supports and electrical enclosures
Angles ASTM B221/B221M or EN 755 Equal, unequal or customised Standard and customised profiles Frames, partitions, supports and architectural structures
Channels ASTM B221/B221M or EN 755 U-channel, C-channel or customised Standard and customised profiles Tracks, frames, partitions and equipment structures
Custom Profiles As per approved drawing Solid, hollow, semi-hollow or complex extrusion As per drawing and order quantity Windows, doors, façades, furniture and OEM products

Rolled HE9/6063 products may be less commonly available than extruded forms. Availability depends on the required product form, temper, dimensions, finish and quantity.

Applications of HE9 Aluminium

  • Windows and Doors: Widely used for window frames, door frames, sliding systems, partitions and related architectural profiles.
  • Curtain Walls and Façades: Suitable for visible profiles requiring a smooth surface, corrosion resistance and anodised or powder-coated finishes.
  • Architectural Extrusions: Used for trims, channels, sections, frames, balustrades and decorative building components.
  • Electrical Components: Used for conduit, housings, enclosures, mounting profiles and selected conductive components.
  • Furniture and Interior Systems: Suitable for furniture frames, modular partitions, display systems, handles and decorative profiles.
  • Railings and Balustrades: Used for posts, rails, handrails and formed elbows in suitable tempers.
  • Automotive Components: Used for trims, roof rails, decorative sections, lightweight frames and hydroformed tubes.
  • Solar-Panel Frames: Commonly selected for anodised module frames, mounting profiles and supporting sections.
  • Irrigation Systems: Used for lightweight irrigation pipes, tubes and related fittings.
  • Heat Sinks and Electronic Enclosures: Its extrudability and thermal conductivity make it suitable for cooling profiles and electronic housings.
  • Shopfitting and Display Systems: Used for display frames, shelving profiles, sign frames and retail fixtures.
  • General Engineering: Suitable for lightweight frames and components where appearance, corrosion resistance and ease of extrusion are important.

When Should a Buyer Select HE9 Aluminium?

HE9 aluminium is suitable when the buyer requires:

  • Complex or thin-wall extruded profiles
  • A smooth and consistent surface finish
  • Excellent anodising response
  • High corrosion resistance
  • Good weldability
  • Moderate mechanical strength
  • Lightweight architectural components
  • Customised solid, hollow or semi-hollow profiles

HE9 is generally preferred over HE30 when profile complexity, appearance and anodising quality are more important than maximum structural strength.

HE9 vs HE30 Aluminium

Selection Factor HE9 Aluminium HE30 Aluminium
Common Modern Grade 6063 6082
Primary Advantage Extrudability and surface finish Higher mechanical strength
Profile Complexity Excellent Good
Decorative Anodising Excellent Good, but appearance requires evaluation
Corrosion Resistance Excellent Very good
Machinability Fair to good Good
Structural Strength Moderate Higher
Typical Use Architectural and decorative profiles Structural and machined components

The final selection should be based on the component drawing, load, wall thickness, surface finish, fabrication process and governing material standard.

Important Buyer Check: HE9 or 6063?

When an older drawing specifies HE9, confirm:

  • Whether EN AW-6063 or AA 6063 is permitted
  • Required product form
  • Required temper—T4, T5, T6 or another condition
  • Minimum tensile and proof strength
  • Profile dimensions and wall thickness
  • Dimensional and straightness tolerances
  • Anodising colour and coating thickness
  • Powder-coating specification, if applicable
  • Surface-finish acceptance criteria
  • Whether the component will be welded or bent
  • Required inspection and material documentation

This verification helps prevent supplying the correct alloy family in the wrong temper, finish or dimensional standard.

Information Required for an HE9 Aluminium Quotation

For an accurate technical and commercial quotation, please provide:

  • Required product form
  • HE9 or 6063 designation
  • Applicable BS, EN, ASTM, ISO or customer specification
  • Required temper
  • Thickness, width, length, diameter or wall thickness
  • Profile drawing and dimensional tolerances
  • Required mechanical properties
  • Mill, polished, anodised or powder-coated finish
  • Anodising colour and coating thickness
  • Cutting, drilling, machining or fabrication requirement
  • Quantity or total weight
  • Material test certificate requirement
  • Inspection requirement
  • Delivery location
  • Required delivery schedule

For a quotation for HE9 aluminium sheets, plates, pipes, tubes, coils, round bars, flat bars, angles, channels or customised extrusions, contact Solitaire Steel & Engineering LLP. Our team will review the grade, temper, profile drawing, dimensions, finish, quantity and delivery location before confirming availability and pricing.

❝
